Superior Compatibility for Promising Future
|
The image processor platform delivers exceptional 2D imaging with utra-high-definition quality, boasting up to one million pixels. Its extensive color range and avanced image processing capabilities enhance contrast and refine edge details, vastly improving the detection rate of minute lesions.
The adjustable stiffness allows smooth navigation of the endoscope within the digestive tract, while the lightweight, ergonomic handle and intuitive control layout ensure comfortable and precise operation for clinicians.

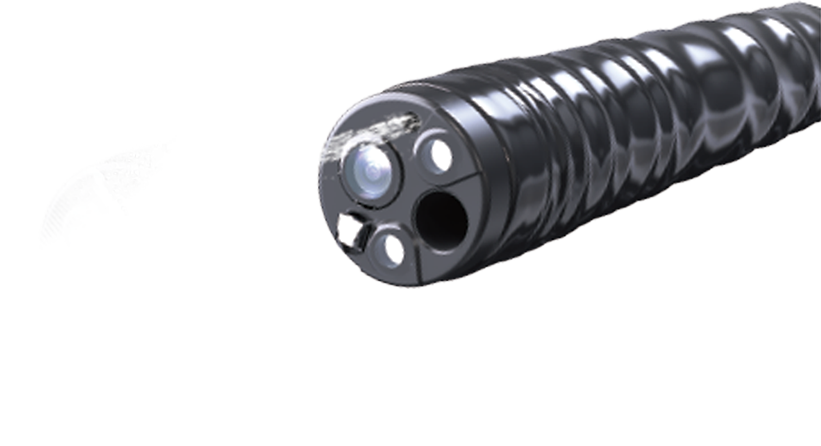

The 7-element lens design with low-dispersion glass lenses effectively captures detailed microscopic structures, combined with a CMOS chip to ensure clear image transmission with reduced noise.

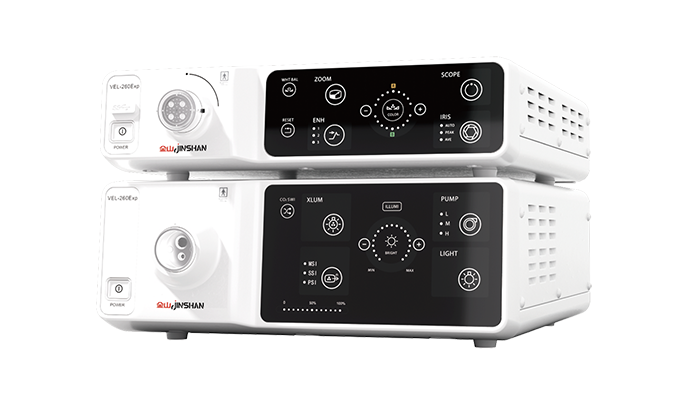

260 Series Image Processor
| Model | VE-260 | VE-260Plus | VE-260Pro | VE-260Exp |
| Image Output Resolution | 1920x1080 | |||
| Image Processing | Yes | |||
| Electron Stain | Yes | |||
| Image Print | Yes | |||
| Parameter Customization Mode | Yes | |||
| Hemoglobin Concentration | Yes | |||
| False Color Display | No | No | Yes | Yes |
| Local Storage | 500G | 1T | 1T | 1T |
260 Series Light Source
| Model No. | VEL-260 | VEL-260Plus | VEL-260Pro | VEL-260Exp |
| Max Luminous Flux Output | 800lm | 1000lm | 800lm | 1000lm |
| CRI | ≥90 | |||
| Color Temperature | 3500K ~7000K | |||
| Brightness | 1 - 19 Grades | |||
| Transillumination | Yes | |||
| Illumination Mode | WL/MSI/SSI | WL/MSI/SSI/PSI | ||
| Light Guide Connector | Compatible with Endoscopic connector of φ34mm | |||
260 Series Scope
| Gastroscopes | Colonoscopes | |||||||||
| EG-260 | EG-260L | EG-260Z | EC-260S | EC-260SL | EC-260AS | EC-260ASL | EC-260AZ | EC-260AT | EC-260ATL | |
| View Angle | 145° | 145° | 90°/145° | 145° | 145° | 145° | 145° | 90°/145° | 172° | 172° |
| Field Depth | 2-100mm | 2-100mm | 1.5-3/3-100mm | 2-100mm | 2-100mm | 2-100mm | 2-100mm | 1.5-3/3-100mm | 2-100mm | 2-100mm |
| Optical Zoom | No | No | Yes | No | No | No | No | Yes | No | No |
| Distal End Diameter | 9.2mm | 9.8mm | 9.8mm | 11.5mm | 12mm | 11.5mm | 12mm | 12mm | 12mm | 12mm |
| Working Length | 1050mm | 1050mm | 1050mm | 1350mm | 1350mm | 1350mm | 1350mm | 1350mm | 1700mm | 1700MM |
| Instrument Diameter | 2.8mm | 3.2mm | 2.8mm | 3.8mm | 4.2mm | 3.8mm | 4.2mm | 3.8mm | 3.8mm | 4.2mm |
| Variable Stiffness | No | No | No | No | No | Yes | Yes | Yes | Yes | Yes |
| Angulation | Up 210°, Down 120°, Left 100°, Right 100° | Up 180°, Down 180°, Left 160°, Right 160° | ||||||||
