Patency Capsule is a dissolvable capsule for pre-procedure gastrointestinal patency assessment. It identifies intestinal stricture risks before capsule endoscopy to mitigate potential capsule retention.

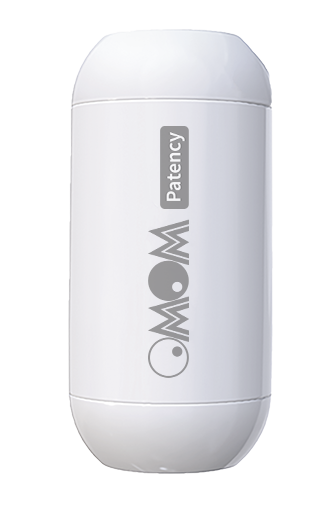

OMOM® Patency Capsule is a dissolvable capsule for pre-procedure gastrointestinal patency assessment. It identifies intestinal stricture risks before capsule endoscopy to mitigate potential capsule retention.

Constructed from biocompatible, dissolvable materials, the capsule is designed to disintegrate after the period specified in the approved instructions for use if retained in the bowel. A favourable patency result reduces, but does not eliminate, the risk of capsule retention.

*CE marked under EU MDR. Not FDA cleared — not available in the United States.

Parameter	Specification	Specification
Model	PC1	PC2
Weight	3.3g ± 0.2g	3.9g ± 0.5g
Size	Φ 11.0mm x 26.0mm	Φ 11.5mm x 32.3mm
Pre-use	OMOM HD_SC1, OMOM Robotic Capsule_RC12	OMOM HD_SC2, OMOM Robotic Capsule_RC22, OMOM Colon Capsule_CC1
Materials	Biocompatible, food grade
Body materials	Lactose anhydrous, barium sulphate, citric acid, magnesium stearate and sodium bicarbonate
Plug materials	Lactose anhydrous, PVP K-90, Avicel PH 200 and Compritol 888
Coating	Parylene C
Operating time (period)	≤100h
Operating temperature	35 ~ 45°C
Shelf life	12 months
Storage conditions	0 ~ 25°C, dry and out of direct sunlight
